Industrial Nitrogen Plant

Name: Industrial Nitrogen Plant
Brand: MORISH INDIA EXIM PVT. LTD.
Price: 3000.00 USD
Availability: InStock

Price 3000.00 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Nitrogen Plant Specification

Diameter
Column diameter based on plant capacity (e.g. 3001400 mm)

Torque
NA (Not applicable for static plant)

Phase
Three phase

Shape
Rectangular/Skid Mounted Modules

Product Type
Industrial Nitrogen Plant

General Use
Production of high-purity nitrogen gas for industrial applications

Material
Carbon steel/Alloy steel/SS 304 depending on specification

Type
Other

Capacity
50 Nm3/hr - 3000 Nm3/hr (customized as required)

Weight (kg)
Varies as per plant capacity and design (typically 1000 kg - 12000 kg)

Computerized
Yes

Automatic
Yes

Control System
PLC based automatic control system

Surface Treatment
Powder coated/painted for corrosion protection

QC System
ISO 9001:2015 certified quality management

Tolerance
ISO standard manufacturing tolerance

Voltage
380V/415V/440V, 3 Phase, 50Hz/60Hz

Dimension (L*W*H)
As per plant configuration (typical range from 2500*1800*3000 mm and above)

Feature
Skid mounted, Energy efficient, Low maintenance, Continuous operation, High purity output

Color
Standard industrial grey/blue or customizable

Installation
On-site installation and commissioning provided

Purity Range
95% to 99.999% nitrogen

Safety Features
Automatic shutoff, pressure relief valves, safety interlocks

Energy Consumption
0.3 to 1.2 kWh/Nm3 (varies with model)

Compliance
Meets international standards (CE, ASME, ISO)

Dew Point
Up to -60C

Noise Level
<70 dB(A) at 1 m

Cooling Requirement
Air cooled/Water cooled depending on model

Service Life
15-20 years with proper maintenance

Adsorbent
Carbon Molecular Sieves (CMS)

Operating Temperature
Ambient (5C to 45C)

Outlet Pressure
5-7 bar standard, up to 30 bar on request

Air Compressor
Included/optional, oil-free available

Industrial Nitrogen Plant Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
50 Pieces Per Month

Delivery Time
2-12 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Export Seaworthy

Main Export Market(s)
Middle East, Asia, Africa

Certifications
Yes

About Industrial Nitrogen Plant

Nitrogen is used for displacing oxygen and preventing explosions in highly dangerous atmospheres, such as chemical plants and manufacturing facilities. We have been serving our clients with a highly functional range of Industrial Nitrogen Plant in different specifications. We test this plant on different parameters prior to the final dispatch from our unit. Industrial Nitrogen Plant can be availed from us at feasible rates.

Product Specification:

Capacity	5 Nm3 to 200 Nm3
Dew Point	Up to (-) 70 C
Purity	Up to 99.999%
Pressure	Up To 5.5 Kg Per Square Cm
Min Order Quantity	1
Start up Time	10 to 15 Minutes
Minimum Order Quantity	1 Piece

Reliable High-Purity Nitrogen Production

Our nitrogen plants deliver stable purity levels up to 99.999%, guaranteeing the quality needed for critical industrial uses. With energy-efficient operation and robust construction, clients benefit from reduced operating costs and extended equipment life in daily production environments.

Versatile and Customizable Capacities

Each plant configuration is tailored to specific throughput requirements, ranging from 50 Nm3/hr to 3000 Nm3/hr. The modular skid-mounted design provides flexibility for site layouts, ensuring easy installation and integration with existing factory processes.

Safety and International Compliance

Equipped with advanced safety features like automatic shutoff, pressure relief valves, and safety interlocks, our nitrogen plants prioritize operator security and process reliability. Full compliance with CE, ASME, and ISO certifications ensures adherence to global safety and manufacturing standards.

FAQs of Industrial Nitrogen Plant:

Q: How does the Industrial Nitrogen Plant generate high-purity nitrogen gas?

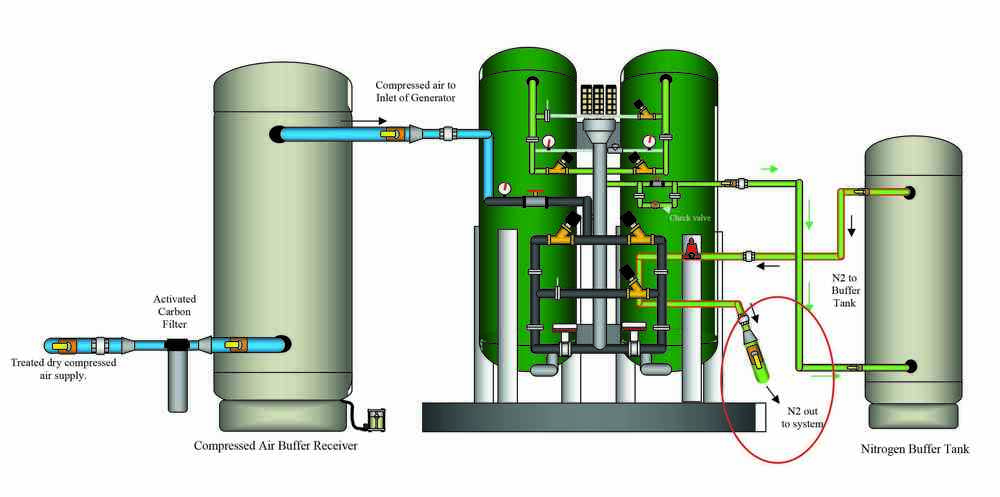

A: The plant leverages Pressure Swing Adsorption (PSA) Technology, using carbon molecular sieves to selectively adsorb oxygen and other impurities from compressed air, ensuring consistent nitrogen purity ranging from 95% to 99.999%.

Q: What is the typical process for on-site installation and commissioning?

A: Installation includes delivery, placement of skid-mounted modules, connection of utilities, and system setup by our expert engineers. Commissioning involves thorough testing, configuration of the automatic PLC controls, and staff training for smooth operation.

Q: When should the air compressor be included or selected as oil-free?

A: The air compressor is available as included or optional. For industries sensitive to oil contamination, such as electronics or pharmaceutical production, choosing an oil-free compressor ensures maximum nitrogen purity and equipment longevity.

Q: Where can these nitrogen plants be installed?

A: The plant is designed for industrial environments and can be installed at manufacturing sites, processing units, laboratories, and other locations requiring high-purity nitrogen production. Site-specific configurations ensure a fit for various layouts.

Q: What are the usage benefits of the continuous and automatic operation features?

A: Continuous automatic operation, supported by a PLC-based control system, ensures minimal downtime, consistent nitrogen supply, and reduced need for manual intervention. This helps maintain productivity while lowering operational costs.

Q: How energy-efficient is the nitrogen plant during operation?

A: The energy consumption ranges from 0.3 to 1.2 kWh/Nm3 depending on model and capacity, making it highly energy efficient compared to conventional options. This translates to reduced utility expenses for facilities over the plants lifespan.

Q: What ensures the products compliance and quality assurance?

A: Our nitrogen plants are manufactured under strict ISO 9001:2015 certified quality management and comply with CE, ASME, and ISO safety and operational standards, ensuring reliability, safety, and high performance.
